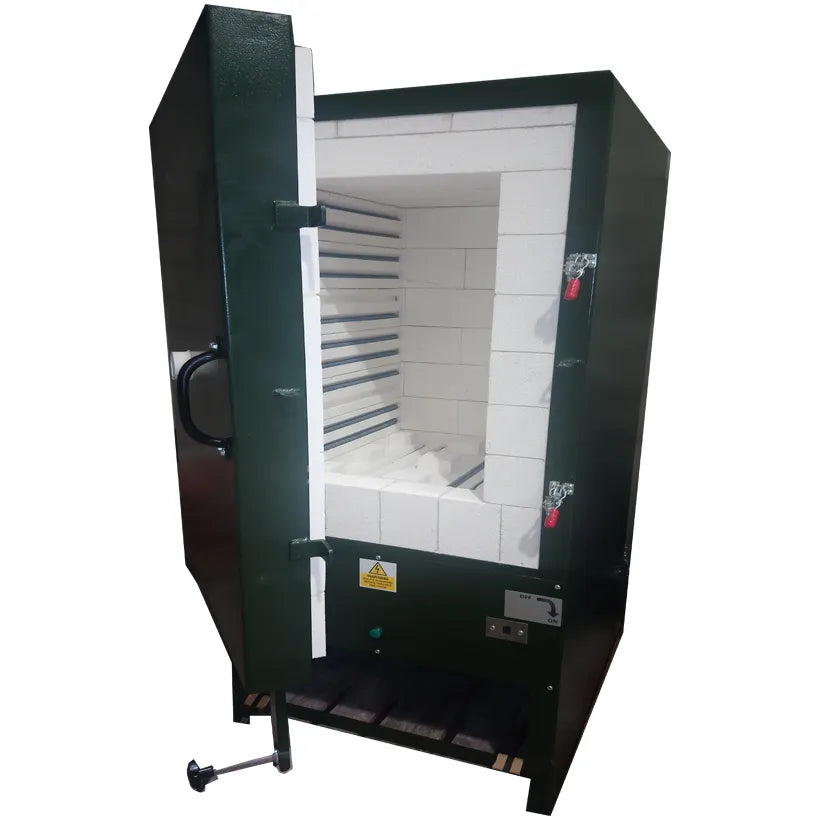

UC College Front Loading Kiln 8.1 CU.FT

Code 7215

MAX TEMP – 1300°C

CAPACITY – 8.1 ft³ (225 Litres)

INTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 460 X 680 X 750mm (18.1″ X 26.7″ X 29.5″)

EXTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 780 X 1120 X 1700mm (31.7″ X 44″ X 66.9″)

WEIGHT – 440 kg

ELECTRICAL – 13.5 kw 63A single phase or 32A 3 phase

OPTIONAL KILN FURNITURE SET

OPTIONAL CONTROLLER ST312B / ST315B

• Front loading for ease of packing
• High thermal efficient construction
• Free standing stove with Green U/C enamel paint finish
• High grade spiral wound elements fitted to sidewall and base
• Efficient low thermal mass brickwork
• Uk compliant electro mechanical door interlock safety system
• Over temperature kiln lining protection
• Ventilation cooling port
• Instrument socket to accept all controllers in our range
• Kiln is set up with a R type Thermocouple – Controllers must match this setting.
• PLEASE NOTE – Optional Kiln Furniture Set & Controller (these are not included in kiln price – please see the selection options)

Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.
