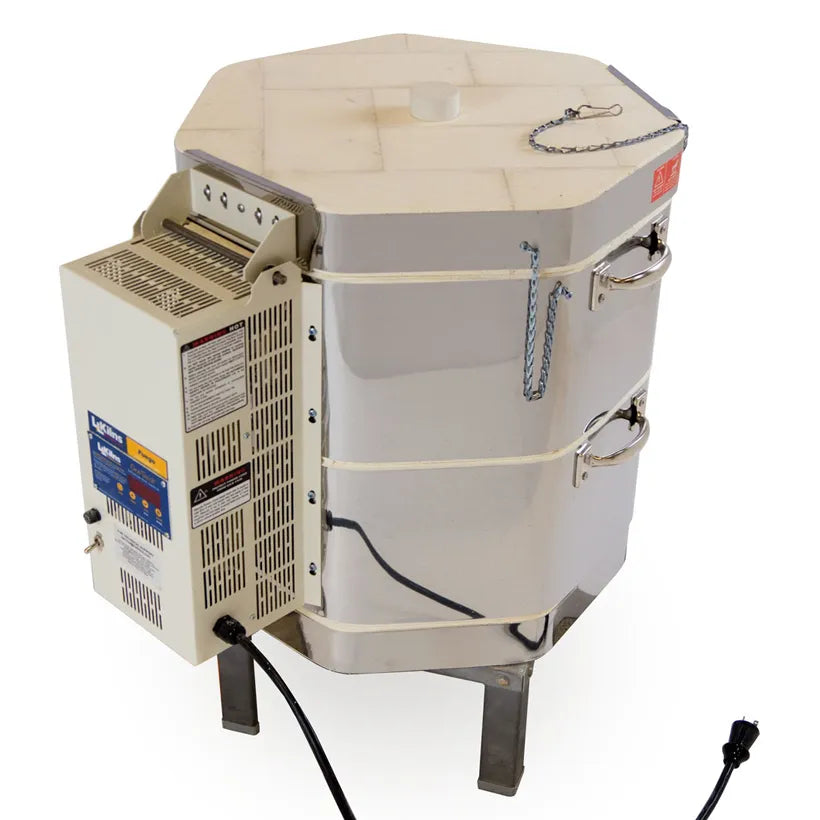

Fuego L&L 1.4 CU.FT

Code 7002

MAX TEMP – 1290°C

CAPACITY – 1.4 ft³ (40 Litres)

INTERNAL DIMENSIONS
(DIAMETER X HEIGHT) – 330 X 457mm (13″ x 18″)

EXTERNAL DIMENSIONS
(DIAMETER X HEIGHT) – 686mm x 787mm (27″ X 31″)

WEIGHT – 85kg

ELECTRICAL – 3.0 kw (13.1 amp)

– Heavy-duty 4 Elements. Patented hard ceramic element holders protect brick and keep elements from falling out of grooves.

– One-Touch™ Intuitive Kiln Control easily fires the bisque and glaze programs typically used. It is also easy to adjust simple parameters like cone, delay, hold, heat-up, and cool-down rates. Also four custom ramp/hold programs with 8 segments each.

– Heavy-duty 2 mm thick (14 gauge) full solid stand with multiple bends for strength.
Bolt on legs. Plastic feet protectors.

– Type K thermocouple 8 gauge with ceramic protection tube. The protection tube prolongs life and prevents thermocouple corrosion from contaminating work.

– Single phase

– Furniture set & Batt wash included

Two 227 mm (9”) high sections for a total height of 450mm (18”). Kiln comes
assembled but can easily taken apart for moving. Stainless steel wrapped around brick with 3 adjustable clamps. All corrosion resistant stainless screws are used in the construction. 76 mm (3”) firebrick backed up with 3 mm (1/8”) of ceramic fibre paper (Non-RCF which meets European Directives). Proprietary reflective brick coating included. This helps firebrick stay strong on the surface and helps prevent dusting.

Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.
