K&F Falcon 10 CU.FT Front Loading Kiln

Code 7208

MAX TEMP – 1300°C

CAPACITY – 10 ft³ (283 Litres)

INTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 610 X 610 X 760mm (24″ X 24″ X 30″)

EXTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 965 X 1066 X 1500mm (38″ X 42″ X 59″)

WEIGHT – 456 kg

ELECTRICAL – 15.75 kw (80 amp)

OPTIONAL KILN FURNITURE SET

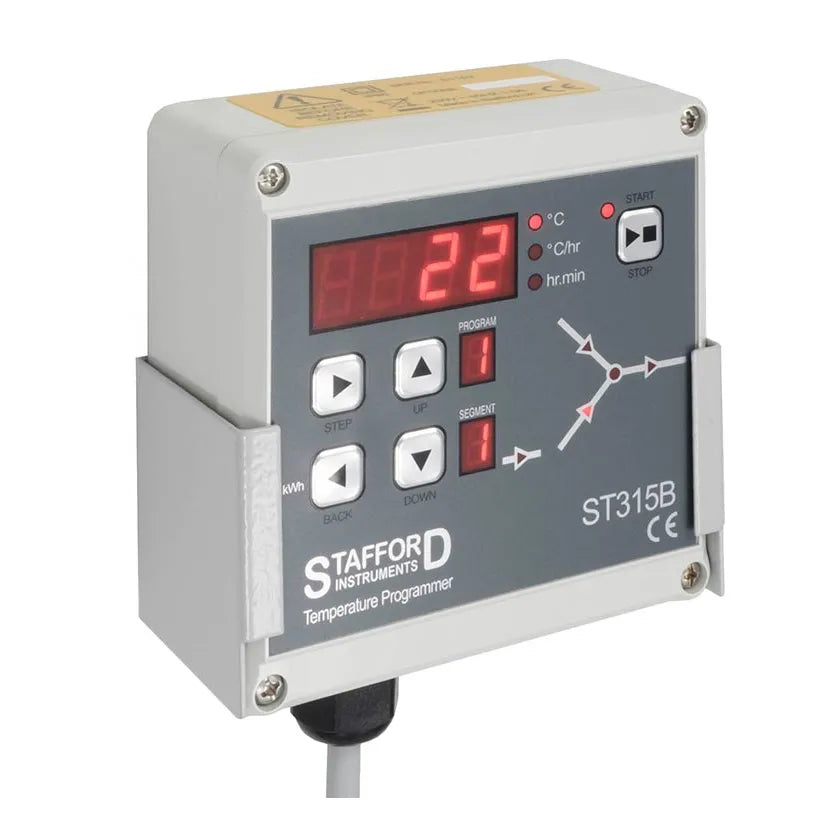

OPTIONAL CONTROLLER ST312B / ST315B

• Front loading for ease of placing ware
• Highly thermally efficient construction
• Free standing stove enamel paint finish
• High grade spiral wound elements fitted to sidewall and base
• Efficient low thermal mass brickwork
• Uk compliant electro mechanical door interlock system
• Over temperature kiln lining protection
• Ventilation cooling port
• Instrument socket to accept all controllers in our range
• Single phase / 3 Phase
• PLEASE NOTE – Optional Kiln Furniture Set & Controller (these are not included in kiln price – please see the selection options)

Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.
