K&F Falcon 12.5 CU.FT Front Loading Kiln

Code 7210

MAX TEMP – 1300°C

CAPACITY – 12.5 ft³ (354 Litres)

INTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 610 X 760 X 760mm (24″ X 30″ X 30″)

EXTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 965 X 1193 X 1500mm (38″ X 47″ X 59″)

WEIGHT – 480 kg

ELECTRICAL – 18.5 kw 3 phase

• Optional Furniture set - 10 x 14 x 11 x 3/4" kiln shelves, Props 9 x 1" 9 x 2" 9 x 3",  6 x 4", 6 X 8" & 1KG batt wash

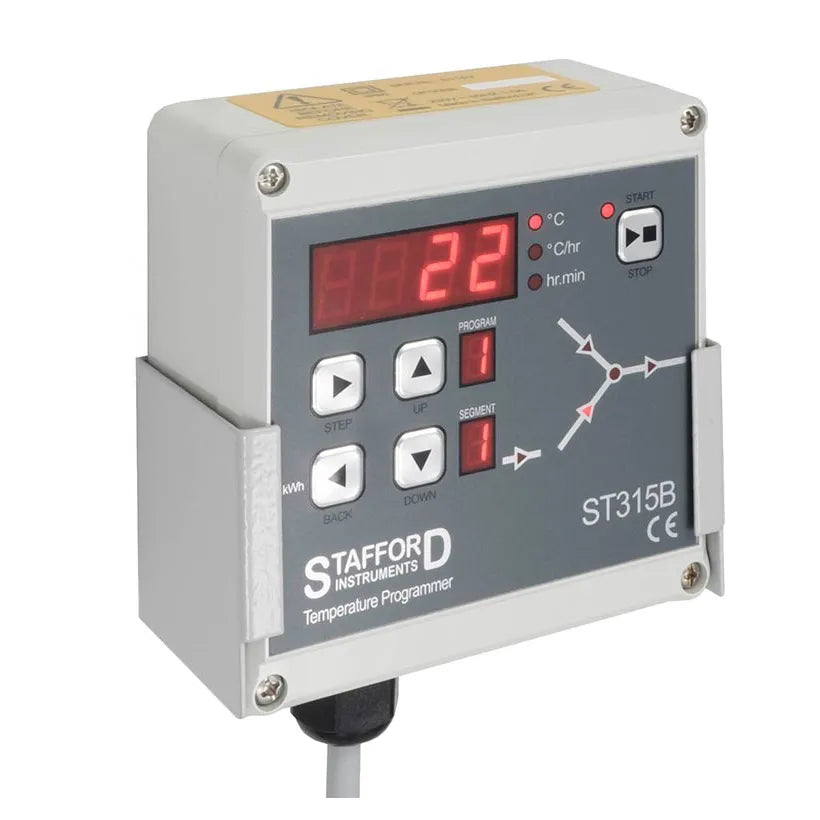

• Optional Controller  - ST315B

SPECIFICATIONS

• Front loading for ease of placing ware
• Highly thermally efficient construction
• Free standing stove enamel paint finish
• High grade spiral wound elements fitted to sidewall and base
• Efficient low thermal mass brickwork
• Uk compliant electro mechanical door interlock system
• Over temperature kiln lining protection
• Ventilation cooling port
• Instrument socket to accept all controllers in our range
• PLEASE NOTE – Optional controller & furniture set (please see options below)


Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.
