K&F Falcon 12 CU.FT Front Loading Kiln

Code 7209

MAX TEMP – 1300°C

CAPACITY – 12 ft³ (340 Litres)

INTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 610 X 610 X 910mm (24″ X 24″ X 36″)

EXTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 965 X 1193 X 1676mm (38″ X 47″ X 66″)

WEIGHT – 495 kg

ELECTRICAL – 18 kw 3 phase

OPTIONAL KILN FURNITURE SET

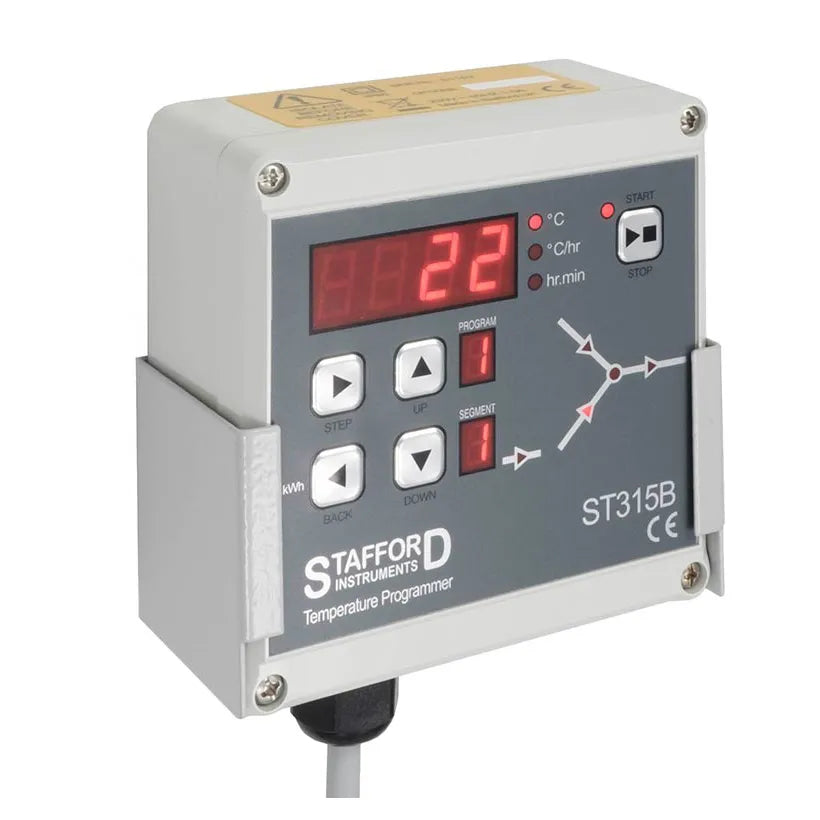

OPTIONAL CONTROLLER ST312B / ST315B

• Front loading for ease of placing ware
• Highly thermally efficient construction
• Free standing stove enamel paint finish
• High grade spiral wound elements fitted to sidewall and base
• Efficient low thermal mass brickwork
• Uk compliant electro mechanical door interlock system
• Over temperature kiln lining protection
• Ventilation cooling port
• Instrument socket to accept all controllers in our range
• PLEASE NOTE – Optional Kiln Furniture Set & Controller (these are not included in kiln price – please see the selection options)

Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.
