K&F Falcon 9 CU.FT Front Loading Kiln

Code 7207

MAX TEMP – 1300°C

CAPACITY – 9 ft³ (256 Litres)

INTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 460 X 610 X 910mm (18″ X 24″ X 36″)

EXTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 715 X 1016 X 1600mm (28.25″ X 40″ X 63″)

WEIGHT – 310 kg

ELECTRICAL – 14.23 kw (80 amp)

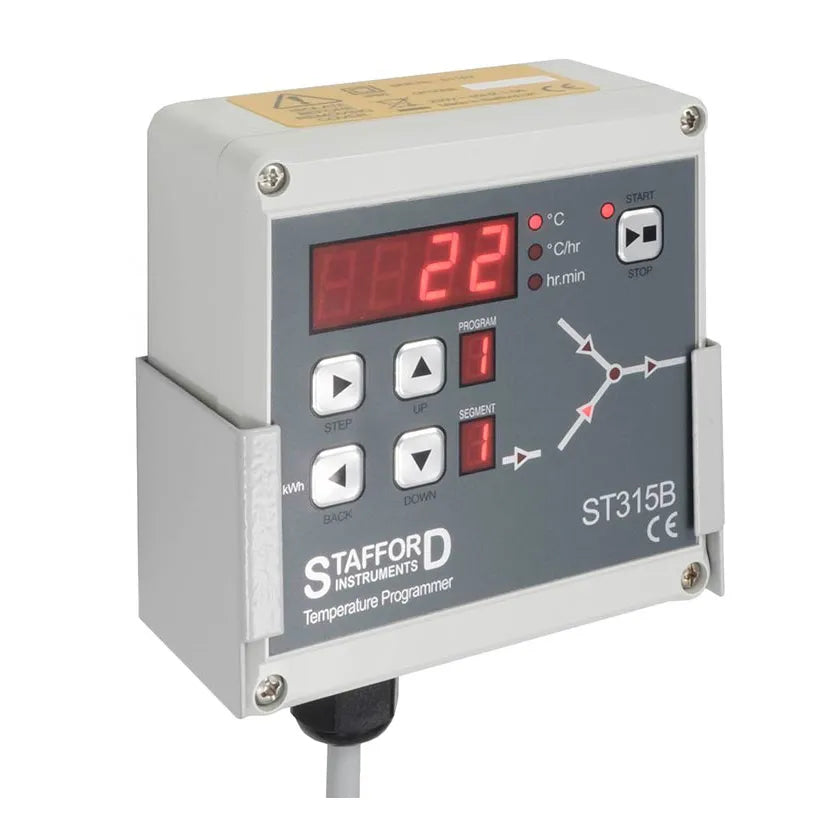

OPTIONAL - Controller ST315B

OPTIONAL - Furniture set

• SHELVES 12 X 16" X 11 X 1/2" & 1KG batt wash
• PROPS 9 x 1", 9 X 2", 6 X 4", 6 X 8", 6 X 10"

SPECIFICATION

• Front loading for ease of placing ware
• Highly thermally efficient construction
• Free standing stove enamel paint finish
• High grade spiral wound elements fitted to sidewall and base
• Efficient low thermal mass brickwork
• Uk compliant electro mechanical door interlock system
• Over temperature kiln lining protection
• Ventilation cooling port
• Instrument socket to accept all controllers in our range
• Single phase / 3 Phase
• PLEASE NOTE – Optional Controller & furniture set (Please see the options below)


Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.
