- Sku: 7109
- Vendor: Ulster Ceramics Pottery Supplies

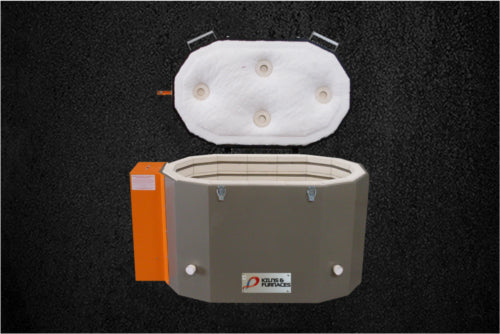

K&F Harrier 16.2 CU.FT Top Loading Kiln
Code 7109
MAX TEMP – 1300°C
CAPACITY – 16.2 ft³ (460Litres)
INTERNAL DIMENSIONS
(DIAMETER X HEIGHT) – Oval diameter 45.5″ X 25.5″ x height 27″
EXTERNAL DIMENSIONS
(DIAMETER X HEIGHT) – 1410mm x 965mm (55″ X 38″) X height 927mm ( 36.5″)
WEIGHT – 170kg
ELECTRICAL – 18.3 kw (63 amp)
KILN FURNITURE SET INCLUDED
- SHELVES 6 X 23" X 11 X3/4" rounds, Plus 3 X 23" X 18" X 3/4" rectangular & 1KG batt wash
- PROPS 6 x 1", 6 X 2", 8 X 3", 8 X 4", 8 X 8"
SPECIFICATION
- Sturdy chassis designed to support the heaviest load (no castor wheels)
- Fibre lightweight lid
- Side connection chamber to give clear access to the front of the kiln
- High grade spiral wound elements
- Efficient low thermal mass brickwork
- Fully compliant captive key electro mechanical interlocking system
- Vent cooling plugs for lid and sidewall
- Instrument socket to accept all controllers in our range
- Single phase
-
OPTIONAL - Stafford ST315B Controller Included (Code 7421)
Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.

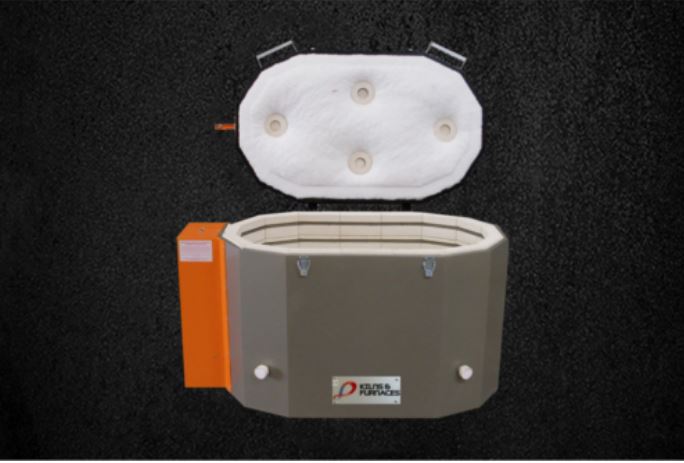

K&F Harrier 16.2 CU.FT Top Loading Kiln
