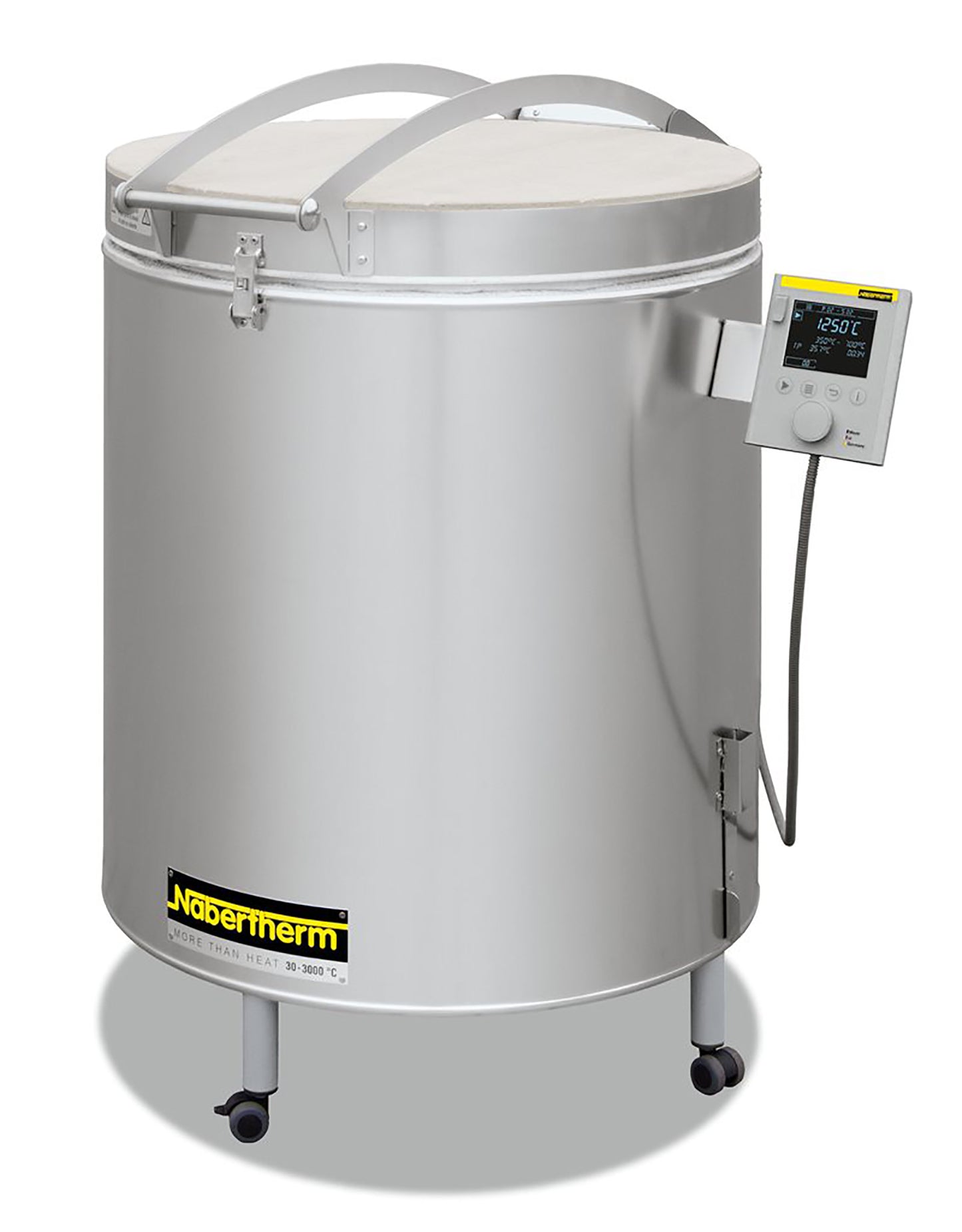

Nabertherm Top 60 Top Loading Kiln

Code 7115 / 7115-1

Nabertherms Top 60 top loading Kilns operate off single phase 3.6KW electric supply. Strongly constructed for long life and low maintenance. The perfect kiln for hobby and work shop! Attractive design, low weight and good firing results are only a few of the advantages of our top loaders.

Specifications;

1. power supply:
2. Capacity: 60 litres
3. Maximum operating temperature: 1280 (cone 10)
4. Insulation materials rated to 1320°C
5. Controller: B500 5 programs, 4 segments
6. Adjustable air inlet for clean chamber atmosphere
7. Weight 72KG
8. Dimensions (mm) Inner - 410 W x 460 H  Outer - 580 W x 870 D x 870H

Features

• Housing made of textured stainless steel
• Controller mounted on the right side of the kiln with removable holder for comfortable operation, data input vis jog dials & buttons
• Multiple layers of insulation for low exterior temperatures

• Lid with adjustable quick-release lock and padlock

• Long-life lid seal (brick on brick)

• Heating from all sides, elements embedded in grooves for protection
• Thermocouple protected in kiln wall
• Infinitely adjustable air inlet in opening in the kiln bottom for good ventilation and short cooling times
• Exhaust air outlet on kiln side

• Defined application within the constraints of the operating instructions
• NTLog for Nabertherm controller: recording of process data with USB-flash drive
• Wall-bracket for controller with 2.5 m connecting cable

– Optional Furniture Set Available

4x kiln shelves 35cm by 1cm

9x 5cm props

6x 10cm props
