Second Hand UC College Front Loading Kiln 4.2 CU.FT

Code 7216

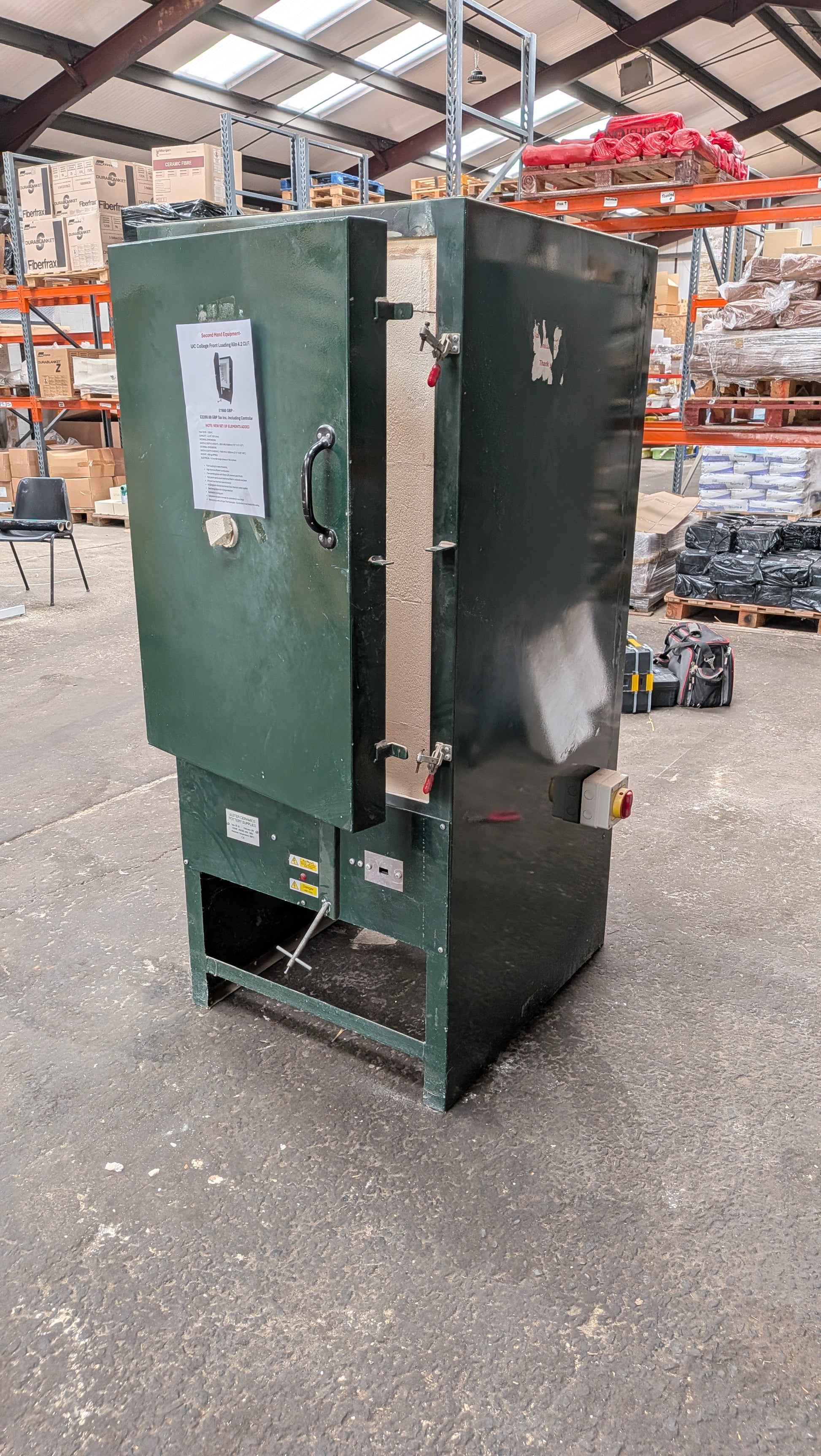

Second Hand UC College Front Loading Kiln 4.2 CU.FT

MAX TEMP – 1300°C

CAPACITY – 4.2 ft³ (120 Litres)

INTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 390 X 455 X 690mm (15″ X 18″ X 27″)

EXTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 700X 910 X 1650mm (27.5″ X 36″ X 65″)

WEIGHT – 400 kg APPROX

ELECTRICAL – 9.5 kw 40A single phase or 16A 3 phase

OPTIONAL KILN FURNITURE SET

OPTIONAL CONTROLLER ST312B / ST315B

• Front loading for ease of packing
• High thermal efficient construction
• Free standing stove with Green U/C enamel paint finish

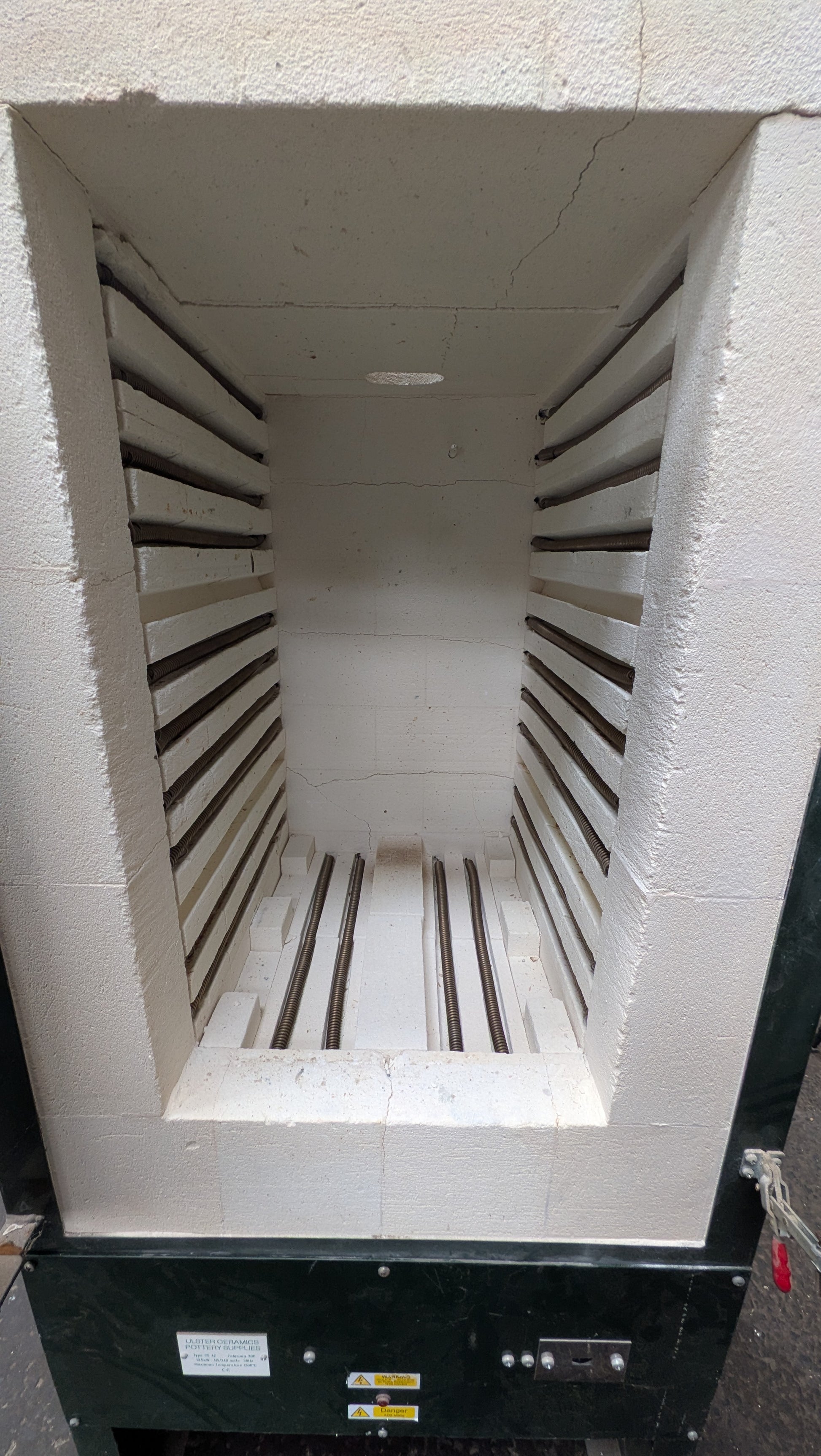

• High grade spiral wound elements fitted to sidewall and base
• Efficient low thermal mass brickwork
• Uk compliant electro mechanical door interlock safety system
• Over temperature kiln lining protection
• Ventilation cooling port
• Instrument socket to accept all controllers in our range
• Kiln is set up with a R type Thermocouple – Controllers must match this setting.
• PLEASE NOTE – Optional Kiln Furniture Set & Controller (these are not included in kiln price – please see the selection options)

Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.
