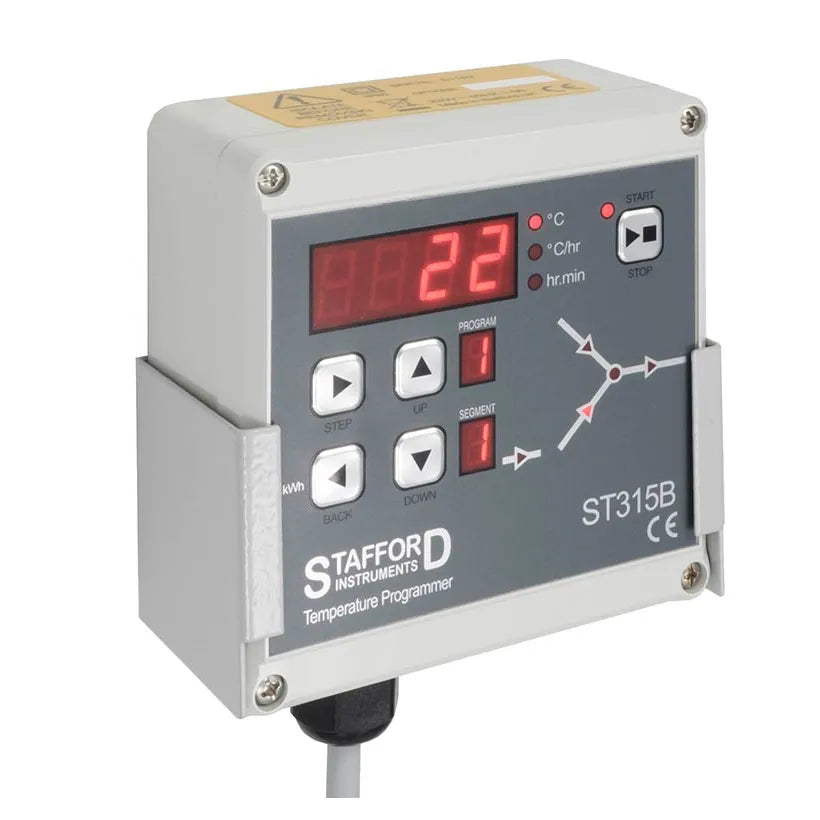

Stafford Controller ST315B

Code 7421

The ST315B is a 9-program controller designed for glass, ceramics & pottery use. Each program can have up to 9 segments. It is fully adjustable with a detailed 5-lamp mimic display & continuous display of program & segment numbers. Each segment comprises of a ramp followed by a soak. Ramps can be heating or cooling. It executes a controlled ramp to the soak temperature where it dwells for the required period then executes the next segment. The end of the program is marked by selecting ‘End’ while entering a ramp rate. Natural cooling then follows.

Features:

• 1 controlled heating / cooling ramp + 1 soak per seg • Ideal for glass or ceramics use

• Soak times up to nearly 100 hours • Ramp rates from 1 to 999°C/hour + full

• Programs can be reviewed or altered while firing

• Program Pause & Segment Advance facilities

• Keyboard lockable • Delayed start facility – up to 4 days

• Power failure recovery

• Energy used display

• Standard alarm / safety relay with alarm buzzer

• Complete with wall mounting bracket and User Manuals
